Our cable tie mounts and saddles are stocked in natural nylon; many of the adhesive backed (AMP series) mounting pads are also available in UV black.
Mounts and cradles that have no adhesive backing (SMP and PMP series) are also available in a limited number of colors; please call us for more information.
CABLE TIE MOUNTING PADS, SADDLES & CRADLES

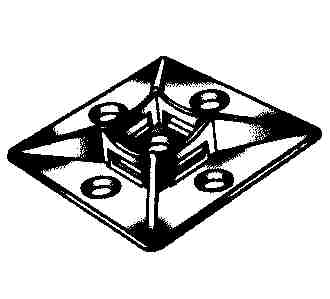

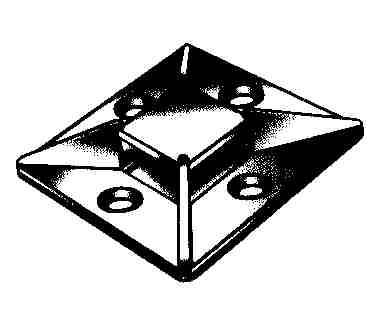

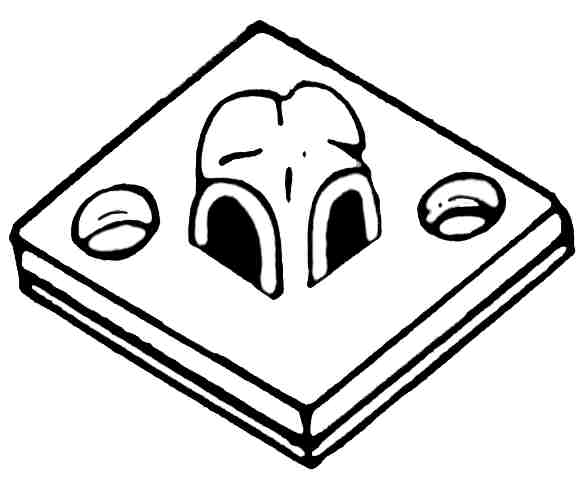

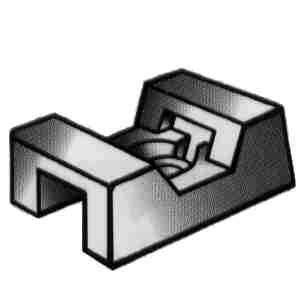

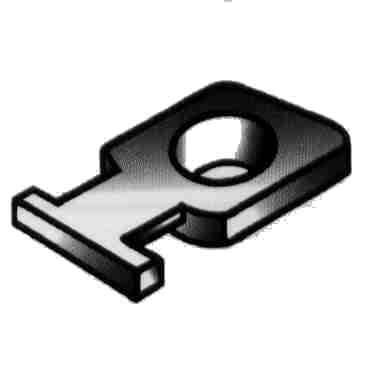

ABMP-075 PMP-001 AMP-150 AMP-200 SMP-180
AMP-001 SMP-10 SMP-001-2 SMP-001-4 CTST-001 CS-10
| PART NUMBER | BASE DIMENSIONS | BASE THICKNESS | SCREW HOLE SIZE | FOR USE WITH CABLE TIE TENSILE STRENGTHS: |
| CTST-001 | 1/2" X 3/4" | .125 | #8 | 18# - 75# |
| CTST-002 | 9/16" X 7/8" | .187 | 1/4" | 18# - 75# |
| BTMP-075 | 3/4" X 3/4" | .312 | #8 | 40#-75# BEADED |
| AMP-200 | 2" X 2" | .440 | 1/4" | 18# - 250# |
| AMP-200-UV | 2" X 2" | .440 | 1/4" | 18# - 250# |
| AMP-150 | 1.5" X 1.5" | .312 | 1/4" | 18# - 175# |
| AMP-150-UV | 1.5" X 1.5" | .312 | 1/4" | 18# - 175# |
| AMP-001 | 1.1" X 1.1" | .312 | #8 | 18# - 75# |
| AMP-001-UV | 1.1" X 1.1" | .312 | #8 | 18# - 75# |
| AMP-075 | .75" X .75" | .187 | #6 | 18# - 40# |
| AMP-075-UV | .75" X .75" | .187 | #6 | 18# - 40# |
| SMP-001-4 | 1.1" X 1.1" | .250 | #8 | 18# - 75# |
| SMP-001-2 | 1.1" X 1.1" | .250 | #8 | 18# - 75# |
| SMP-001-UV | 1.1" X 1.1" | .250 | #8 | 18# - 75# |
| SMP-10 | .625 X .875 | .375 | #10 | 18# - 175# |
| SMP-25 | .625 X .875 | .375 | #12 - 1/4" | 18# - 175# |
| SMP-68 | .375 X .625 | .250 | #8 | 18# - 75# |
| SMP-180 | .920 X .420 | .150 | #6 OR #8 | 18# - 75# |
| SMP-220 | .950 X .500 | .230 | #6 OR #8 | 18# - 75# |
| PMP-001 | .312 X .562 | .688 | 1/4" | 18# - 75# |
| CS-10 | 2.000 x 1.12 | .750 | SPACER COMPARTMENTS: .71, .47, .71 | 18# - 175# |
| CS-11 | 2.000 x 1.12 | .750 | SPACER COMPARTMENTS:. 63, .63, .63 | 18# - 175# |
| MPM-187 | 1.22 O. A. LENGTH | .25 HEAD HEIGHT | DRILL HOLE SIZE .187 X 1.250" | 18# - 50# |
| MPM-250 | 1.22 O. A. LENGTH | .25 HEAD HEIGHT | DRILL HOLE SIZE .250 X 1.250" | 18# - 50# |
| MPM-312 | 1.42 O. A. LENGTH | .30 HEAD HEIGHT | DRILL HOLE SIZE .375 X 1.500" | 18# - 175# |
