SPECIALTY CABLE TIES This webpage contains information regarding the following cable tie types & styles:
Screw Mount Cable ties Push Mount Cable ties I.D. (Marker/Flag) Cable Ties Tefzel Material Cable Ties
Double Loop Cable Ties Beaded Cable Ties Releasable cable Ties Halar Material Cable Ties
Polypropylene Cable Ties Truck "hangar" Lashing Ties Cable Tie Installation Tools
Identification Plates Colored Cable Ties Cable Tie Kits / Assortments Stainless Steel Cable Ties
MOUNTING
CABLE TIES
PMNCT / PMBCT Push Mount Series MNCT / MBCT Series Screw Mount Ties
| PART NUMBER / COLOR | NOMINAL LENGTH | MIN. TENSILE STRENGTH | MOUNTS WITH: | MAX. BUNDLE DIA. | PKG. QTY., STD. | PKG. QTY., BULK | CTN. QTY. |
| MNCT-055 NATURAL | 5.5" | 30# | #4 SCREW | 1" | 100 | 1000 | 10000 |
| MBCT-055 (UV BLACK) | 5.5" | 30# | #4 SCREW | 1" | 100 | 1000 | 10000 |
| MNCT-065 NATURAL | 6.5" | 40# | #8 SCREW | 1.75" | 100 | 1000 | 10000 |
| MBCT-065 (UV BLACK) | 6.5" | 40# | #8 SCREW | 1.75" | 100 | 1000 | 10000 |
| MNCT-070 NATURAL | 8" | 50# | #10 SCREW | 2" | 100 | 1000 | 10000 |
| MBCT-070 (UV BLACK) | 8" | 50# | #10 SCREW | 2" | 100 | 1000 | 10000 |
| MNCT-110 NATURAL | 12" | 50# | #10 SCREW | 3" | 100 | 1000 | 5000 |
| MBCT-110 (UV BLACK) | 12" | 50# | #10 SCREW | 3" | 100 | 1000 | 5000 |
| MNCT-140 NATURAL | 15" | 50# | #10 SCREW | 4" | 100 | 1000 | 5000 |
| MBCT-140 (UV BLACK) | 15" | 50# | #10 SCREW | 4" | 100 | 1000 | 5000 |
| MNCT-145-120 NATURAL | 15" | 120# | 1/4"SCREW | 4" | 100 | N/A | 1000 |
| MBCT-145-120 UV BLACK | 15" | 120# | 1/4"SCREW | 4" | 100 | N/A | 1000 |
| MNCT-215-120 NATURAL | 22" | 120# | 1/4"SCREW | 6" | 100 | N/A | 1000 |
| MBCT-215-120 UV BLACK | 22" | 120# | 1/4"SCREW | 6" | 100 | N/A | 1000 |
| MNCT-285-120 NATURAL | 28" | 120# | 1/4"SCREW | 8" | 100 | N/A | 1000 |
| MBCT-285-120 UV BLACK | 28" | 120# | 1/4"SCREW | 8" | 100 | N/A | 1000 |
| PMNCT-070 NATURAL | 8" | 50# | 1/4" HOLE | 2" | 100 | 500 | 5000 |
| PMBCT-070 UV BLACK | 8" | 50# | 1/4" HOLE | 2" | 100 | 500 | 5000 |
| PMNCT-110 NATURAL | 12" | 50# | 1/4" HOLE | 3" | 100 | 500 | 5000 |
| PMBCT-110 UV BLACK | 12" | 50# | 1/4" HOLE | 3" | 100 | 500 | 5000 |
| PMNCT-140 NATURAL | 15" | 50# | 1/4" HOLE | 4" | 100 | 500 | 5000 |
| PMBCT-140 UV BLACK | 15" | 50# | 1/4" HOLE | 4" | 100 | 500 | 5000 |

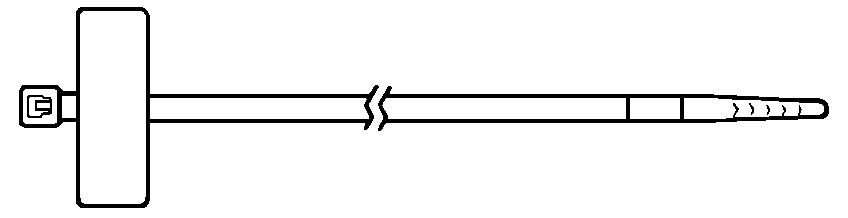

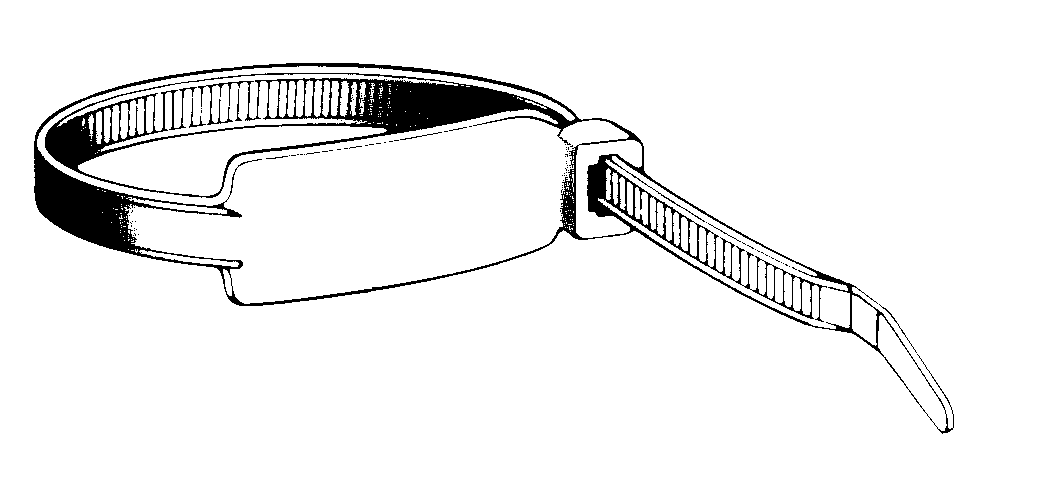

I.D.
OR "MARKER" CABLE TIES
AVAILABLE IN NATURAL NYLON AND LIMITED CUSTOM COLORS
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIA. | MARKER DIMENSIONS | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| NIDT-040-I | 4" | 18# | 3/4" | .31" X 1.0" | 100 | 500 | 5000 |
| NIDT-040-E | 4" | 18# | 3/4" | .37" X .81" | 100 | 500 | 5000 |
| NIDT-070 | 8" | 50# | 1.75" | .5" X 1.2" | 100 | 500 | 2500 |
| NIDT-110 | 12" | 50# | 3" | .5" X 2.2" | 100 | 500 | 2500 |
| NIDT-140 | 15" | 50# | 4" | .5" X 2.2" | 100 | 100 | 2000 |
IDENTIFICATION PLATES
Can be affixed to wire bundles with miniature, intermediate standard cable ties; they provide a matte surface for writing wire routing (or other) information on. Natural Nylon only.
| PART NUMBER | LENGTH | WIDTH | HOLE I.D. | AFFIXED WITH CABLE TIE (TENSILE STRENGTHS) | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| NIDP-150 | 1.50" | .75" | .190 | 18#, 30#, 40# or 50# | 100 | 500 | 5000 |
| NIDP-250 | 2.50" | .75" | .190 | 18#, 30#, 40# or 50# | 100 | 500 | 5000 |

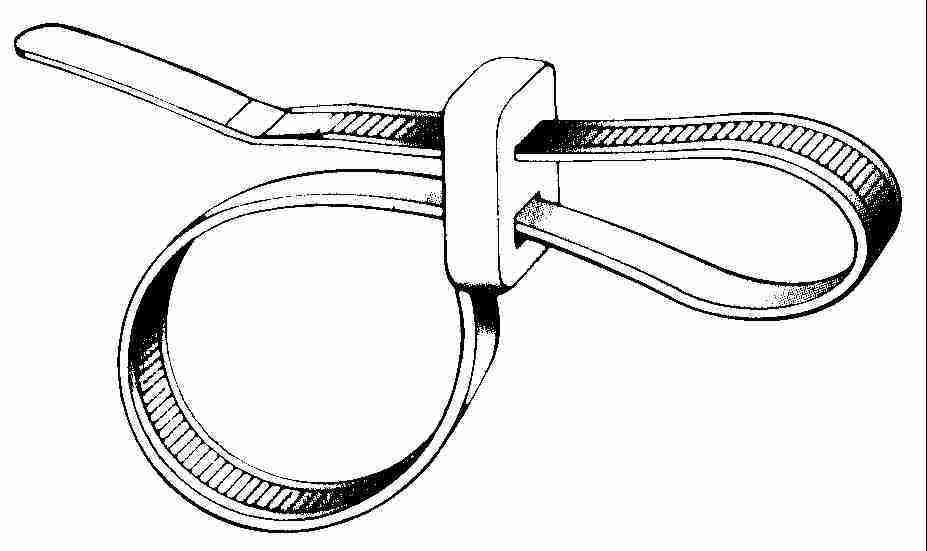

DOUBLE
LOOP CABLE TIES
| PART NUMBER / COLOR | O.A. LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIA. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| DLNCT-070 NATURAL | 8" | 50# | 1-3/4" | 100 | 500 | 5000 |
| DLBCT-070 UV BLACK | 8" | 50# | 1-3/4" | 100 | 500 | 5000 |
| DLNCT-110 NATURAL | 12" | 50# | 3" | 100 | 500 | 2500 |
| DLBCT-110 UV BLACK | 12" | 50# | 3" | 100 | 500 | 2500 |
| DLNCT-140 NATURAL | 15" | 50# | 4" | 100 | 100 | 2000 |
| DLBCT-140 UV BLACK | 15" | 50# | 4" | 100 | 100 | 2000 |

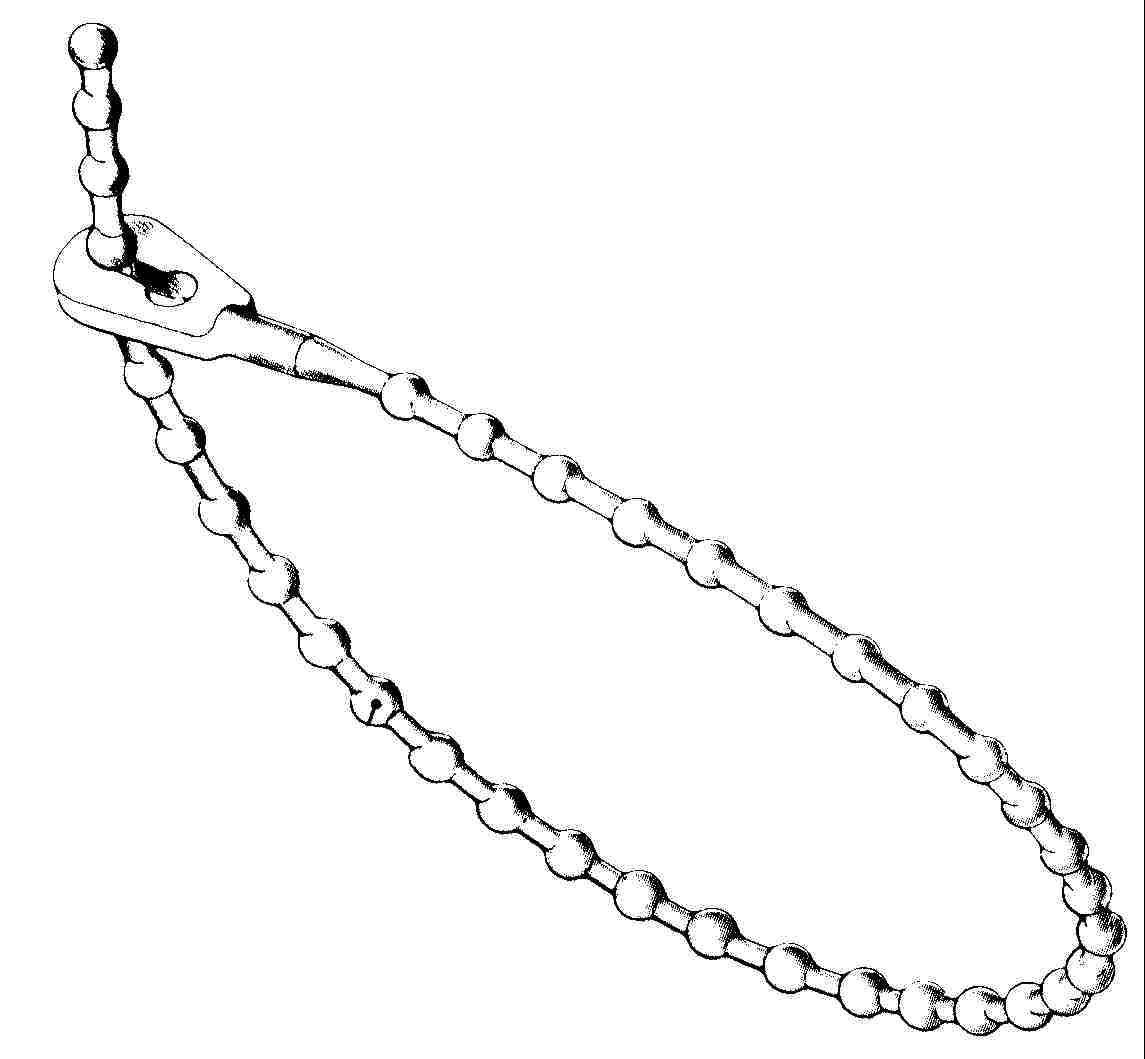

BEADED CABLE TIES
Stocked in natural nylon; uv black, limited colors and polyethylene material also available, subject to minimum order quantities. Beaded identification style cable ties and beaded tie mounting bases are also available.
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| NBCT-04N | 4.25" | 40# | 1.13" | 100 | 1000 | 25000 |
| NBCT-05N | 5" | 40# | 1.38" | 100 | 1000 | 25000 |
| NBCT-06N | 6.75" | 75# | 1.88" | 100 | 1000 | 20000 |
| NBCT-08N | 9" | 75# | 2.5" | 100 | 1000 | 15000 |
| NBCT-10N | 11" | 75# | 3" | 100 | 500 | 10000 |
| NBCT-14N | 15" | 75# | 4" | 100 | 500 | 7500 |
| NBCT-17N | 18" | 75# | 5" | 50 | 250 | 5000 |
RELEASABLE CABLE TIES
Feature an extended locking pawl for easy release and reuse.
| PART NUMBER | NOM. LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| RNCT - 070 NATURAL | 7" | 50# | 1-3/4" | 100 | 1000 | 10000 |
| RNCT - 090 NATURAL | 9" | 50# | 2-3/8" | 100 | 1000 | 5000 |
| RNCT - 110 NATURAL | 11" | 50# | 3" | 100 | 1000 | 5000 |
| RNCT - 140 NATURAL | 14" | 50# | 4" | 100 | 1000 | 5000 |
| RBCT - 070 UV BLACK | 7" | 50# | 1-3/4" | 100 | 1000 | 10000 |
| RBCT - 090 UV BLACK | 9" | 50# | 2-3/8" | 100 | 1000 | 5000 |
| RBCT - 110 UV BLACK | 11" | 50# | 3" | 100 | 1000 | 5000 |
| RBCT - 140 UV BLACK | 14" | 50# | 4" | 100 | 1000 | 5000 |
TEFZEL MATERIAL CABLE TIES
Tefzel material is highly resistant to acid and chemical attack; aquamarine in color, they are plenum rated as well as UL94-V-0 rated.
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| CTZ - 040 | 4" | 50# | 3/4" | 100 | 1000 | 10000 |
| CTZ - 070 | 7" | 50# | 2" | 100 | 1000 | 10000 |
| CTZ - 110 | 11" | 50# | 3" | 100 | 1000 | 5000 |
| CTZ - 140 | 14" | 50# | 4" | 100 | 1000 | 5000 |
HALAR MATERIAL CABLE TIES
Halar is a self extinguishing fluropolymer approved for use in plenums / air handling spaces. We stock Halar Ties in Tyrap configuration; (two piece, stainless steel locking pawl) Rated UL94-V-0.
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| TYV523M | 3.62 | 18# | 3/4" | 100 | 1000 | 25000 |
| TYV525M | 7.31 | 50# | 2" | 100 | 1000 | 10000 |
POLYPROPYLENE MATERIAL CABLE TIES
Polypropylene cable ties are generally unaffected by unusually wet or dry environments; unlike nylon, polypropylene is non-hygroscopic. Resistant to most chemicals, polypropylene ties are used commonly in foodservice, landscaping, beverage or marine / submersible environments. Please note the lower tensile strength of polypropylene compared to 6/6 nylon; this material meets UL94V-HB flammability rating.
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| BCT-070-PP | 7.5" | 25# | 2" | 100 | 1000 | 10000 |
| BCT-110-PP | 12" | 25# | 3" | 100 | 500 | 5000 |
| BCT-140-PP | 14.5" | 25# | 4" | 100 | 500 | 5000 |
| BCT-145-PP | 14.5" | 60# | 4' | 100 | 100 | 3000 |
HEAT STABILIZED CABLE TIES
Heat Stabilized nylon cable ties can be used in environments where constant operating temperatures can exceed the range for standard 6/6 nylon (185º F) ties; heat stabilized ties can function safely in environments with a constant temperature of up to 221º F.
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| HSBCT - 070 | 7.5" | 50# | 2" | 100 | 1000 | 10000 |
| HSBCT - 110 | 12" | 50# | 3" | 100 | 500 | 5000 |
| HSBCT - 140 | 14.5" | 50# | 4" | 100 | 500 | 5000 |
TRUCK "HANGAR" TIES (also known as weather resistant nylon 12 releasable hangar straps)
| PART NUMBER | NOMINAL LENGTH | TENSILE STRENGTH | STRAP WIDTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | CTN. QTY. |
| TY54407 | 6.36" | 200# | .500 | 2" | 50 | 500 |
| TY54413X | 13.75" | 200# | .500 | 4" | 25 | 250 |
COLORED CABLE TIES
Colored cable ties are available in 6/6 nylon; there are both standard and neon colors available. Standard colors include Blue, Green, Yellow, Orange, Red, Brown, Gray, Silver, Gold and Purple. There are a limited number of sizes of Glow-In-The-Dark cable ties as well (off white in daylight). Neon colors include Sky Blue, Safety Orange, Hot Pink, Day-Glo Green and Signal Yellow. We also offer a limited line of "Clear Color" ties in 8"; Clear Colors include burgundy, aquamarine, royal blue and navy blue. Larger than normal minimum quantity orders may be required for some unusual colors; please inquire as to stock availability. To inquire or order colored cable ties, please use the part number listed in the table below and add the correct suffix code to denote the color you want. Standard and Clear color ties begin with the prefix "CTC-"; Neon Cable Ties begin with the prefix "CCTN-". As an example, if you wanted to order an 8" Red 50# cable tie, the part number would be CTC-081-RED; a 14.5" 50# Neon Blue tie would be CCTN-141-FBEC.
Color codes / suffixes to add to part numbers are as follows:
STANDARD COLORS: Blue = BLU; Green = GRN; Yellow = YEL; Orange = ORG; Red = RED; Brown = BRN; Gray = GRY; Silver = SLVR; Gold = GLD; Purple = PPL
CLEAR COLORS: Burgundy = BURG; Aquamarine = AQUA; Navy Blue = NAVY; Royal Blue = ROY; GLOW = Glow in the Dark
NEON COLORS: Solar Blue = FBEC; Safety orange = FOEC; Hot Pink = FPKC; Day-Glo Green = FGNC; Signal Yellow = FYWC
| PART NUMBER | NOM. LENGTH | TENSILE STRENGTH | MAX. BUNDLE DIAMETER. | PKG. QTY. STD. | PKG. QTY BULK | CTN. QTY. |
| PREFIX * -041-*COLOR CODE | 4" | 18# | 3/4" | 100 | 1000 | 25,000 |
| PREFIX *-061-*COLOR CODE | 6" | 30# | 1-5/8" | 100 | 1000 | 20,000 |
| PREFIX *-081-*COLOR CODE | 8" | 50# | 2" | 100 | 1000 | 10,000 |
| PREFIX *-111-*COLOR CODE | 12" | 50# | 3" | 100 | 500 | 5,000 |
| PREFIX *-141-*COLOR CODE | 14.5" | 50# | 4" | 100 | 500 | 5,000 |
CABLE TIE ASSORTMENTS / KITS
| PART NUMBER | EACH KIT CONTAINS: | MIN. ORDER QTY. |
| PAK-1-N | NATURAL CABLE TIE ASSORTMENT; 100 EACH 4"18#, 8" 40#, 11" 50# CABLE TIES (300 TIES TOTAL) | 10 EA. |
| PAK-1-UV | UV BLACK CABLE TIE ASSORTMENT; 100 EACH 4"18#, 8" 40#, 11" 50# CABLE TIES (300 TIES TOTAL) | 10 EA. |
| PAK-2-N | NATURAL CABLE TIE ASSORTMENT; 100 EACH 7.5" 50#, 11" 50# CABLE TIES (200 TIES TOTAL) | 10 EA. |
| PAK-2-UV | UV BLACK CABLE TIE ASSORTMENT; 100 EACH 7.5" 50#, 11" 50# CABLE TIES (200 TIES TOTAL) | 10 EA. |
| PAK-3-N | NATURAL CABLE TIE ASSORTMENT; 100 EACH 4" 18" , 8" 40# TIES (200 TIES TOTAL) | 10 EA. |
| PAK-3-UV | UV BLACK CABLE TIE ASSORTMENT; 100 EACH 4" 18" , 8" 40# TIES (200 TIES TOTAL) | 10 EA. |
| PAK-4-N | NATURAL CABLE TIE ASSORTMENT; 100 EA. 4" 18# TIES, 100 EACH 6" 30# TIES, 50 EACH 9.8" 50# TIES, 25 EA 14.5" 120# CABLE TIES | 10 EA. |
| PAK-4-UV | UV BLACK CABLE TIE ASSORTMENT; 100 EA. 4" 18# TIES, 100 EACH 6" 30# TIES, 50 EACH 9.8" 50# TIES, 25 EA 14.5" 120# CABLE TIES | 10 EA. |
| PAK-4-FL | 4" 18# NEON TIE KIT; 20 PCS. EACH NEON BLUE, GREEN, ORANGE, YELLOW, PINK TIES | 10 EA. |
| PAK-8-FL | 8" 50# NEON TIE KIT; 20 PCS. EACH NEON BLUE, GREEN, ORANGE, YELLOW, PINK TIES | 10 EA. |
| PAK-11-FL | 11" 50# NEON TIE KIT; 20 PCS. EACH NEON BLUE, GREEN, ORANGE, YELLOW, PINK TIES | 10 EA. |
| PAK-14-FL | 14" 50# NEON TIE KIT; 20 PCS. EACH NEON BLUE, GREEN, ORANGE, YELLOW, PINK TIES | 10 EA. |
STAINLESS STEEL CABLE TIES
Installation Tools are also available for Stainless Steel Cable Ties.
| PART NUMBER | MATERIAL | NOM. LENGTH | MIN. TENSILE STRENGTH | MAX. BUNDLE DIA. | TIE WIDTH | PKG. QTY |
| TBSS7-180 | 304SS | 6.5 | 100# | 1 | .177 | 100 |
| TBSS10-180 | 304SS | 10.0 | 100# | 2 | .177 | 100 |
| TBSS16-180 | 304SS | 16.0 | 100# | 4 | .177 | 100 |
| TBSS23-180 | 304SS | 22.5 | 100# | 6 | .177 | 100 |
| TBSS29-180 | 304SS | 29.0 | 100# | 8 | .177 | 100 |
| TBSS10-250 | 304SS | 10.0 | 200# | 2 | .250 | 100 |
| TBSS17-250 | 304SS | 16.5 | 200# | 4 | .250 | 100 |
| TBSS23-250 | 304SS | 22.5 | 200# | 6 | .250 | 100 |
| TBSS29-250 | 304SS | 29.0 | 200# | 8 | .250 | 100 |
| TBSS35-250 | 304SS | 35.0 | 200# | 10 | .250 | 100 |
CABLE TIE INSTALLATION TOOLS
| PART NUMBER | INSTALLS TENSILE STRENGTH TIES: | INSTALLS TIE LENGTHS; (RANGE) |
| T-1 | 18#, 30#, 40#, 50# (FULLY ADJUSTABLE, HEAVY DUTY TOOL) | 4" - 17" |
| T-2 | 120#, 175# | 8" - 48" |
| T-3 | 18#, 30#, 40#, 50# (LIGHT DUTY TOOL) | 4" -17" |
| TBWTA180 | 100# STAINLESS STEEL | 6.5" - 29" |
| TBWTA250 | 200# STAINLESS STEEL | 10" - 35" |
Please fax current inquiries for VELCRO hook and loop cable ties; complete data for this product line will be added to the website in the near future.
For additional information and pricing, e-mail us at: sales@icgcorporation.com or fax us at (253)872-6558. When making inquiries or requesting quotations, please include the series or type of locknut that you are looking for, part number and / or all relevant dimensions and specifications as well as the quantity needed.
To review a list of downloadable catalog files for our other products in .PDF format, please see the ICG Catalog page
